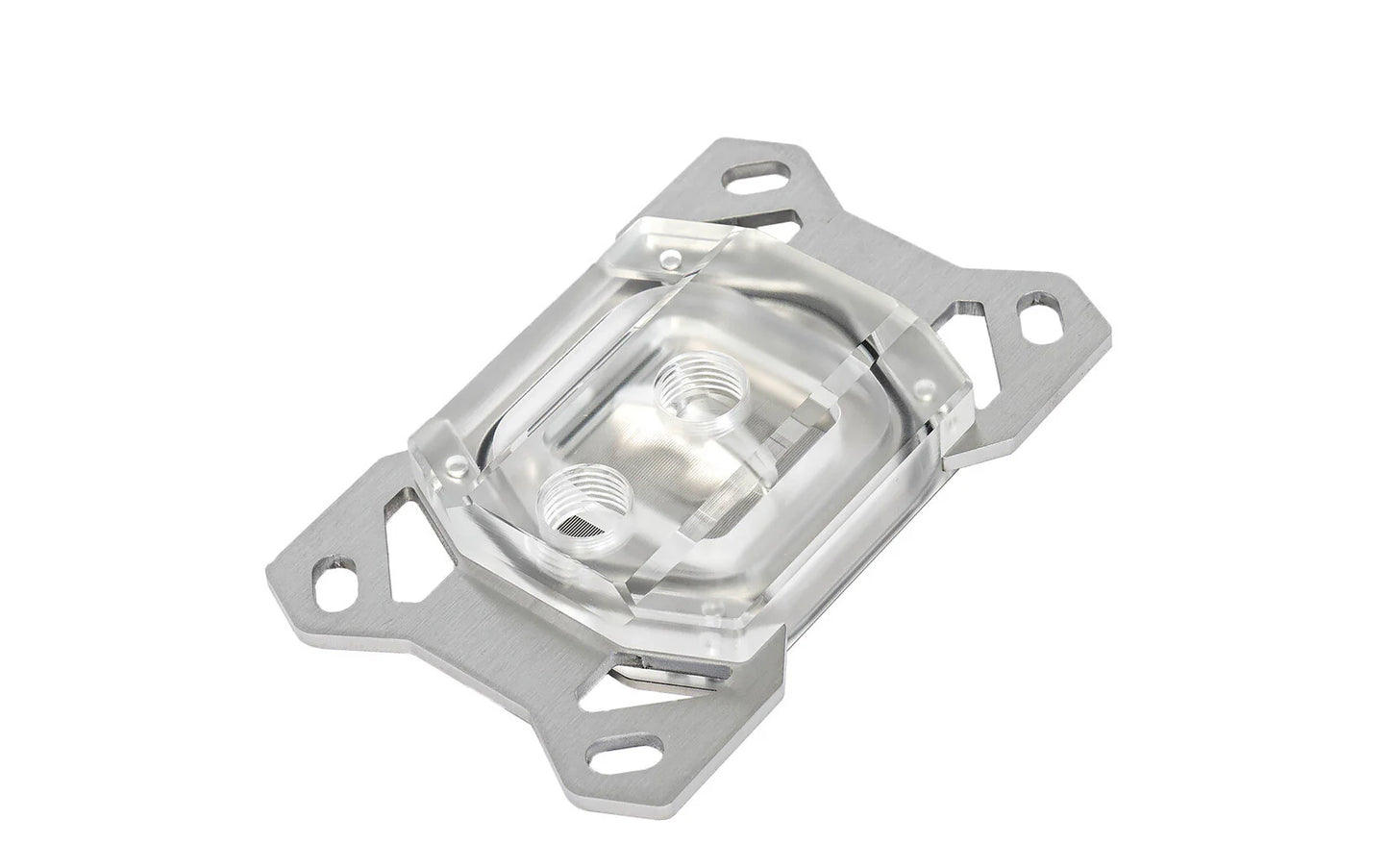

HEATKILLER IV PRO (AMD, AM4, AM5) ACRYLIC CLEAN -AMD CPU BLOCK (18013)

EATKILLER IV for CPU water cooler

Our HEATKILLER® CPU series water coolers are among the best-known and most powerful processor water coolers in the world. Since their introduction in 2001, the model series has been continuously expanded and perfected. The HEATKILLER® IV represents the most comprehensive and latest development.

• Up to 3°C better temperatures compared to the previous model
• Increased flow rate thanks to a larger nozzle and collection channel, resulting in fewer blockages.
• tool-free Easy Mount system
• Extra large connectors thanks to 25mm spacing

New cooling structure and optimized airflow

Our cooling structure underwent the most significant redesign. We equipped the cooler with considerably finer fins to provide a larger surface area and thus better heat dissipation. We also ensured that the fins were designed in such a way that the airflow was not compromised.

Compared to the previous model, we eliminated the nozzle plate and integrated it directly into the lid. This innovative design allowed us to increase performance, improve airflow, and optimize reliability.

Heatkiller IV Easymount, top quality workmanship, Made in Germany

To make installation as easy as possible, we developed the Easy-Mount system. This allows the cooler to be mounted or dismounted without tools at any time after initial installation. The mounting system is further enhanced by a fixed stop on the mounting bracket, virtually eliminating the possibility of incorrect installation.
But the design, too, should be befitting a Watercool product. Superior manufacturing techniques, combined with the finest materials, result in our Heatkiller IV cooler. To best showcase the opulent design, we listened to our customers' wishes and accommodated connection types up to 19mm.

Product Made in Germany

Manufactured with the utmost care on our state-of-the-art CNC machine park in Waren-Müritz, many work steps are carried out by hand, and each product is finished according to the four-eyes principle. Made in Germany as you would expect.

Technical specifications:
Top material: Nickel-plated acrylic;
Base plate material: Nickel-plated copper
; Mounting bracket material: Polished stainless steel;
EasyMountSystem material: Stainless steel;
Cooler dimensions (L x W x H): 66 x 59 x 17 mm;
Weight: approx. 450 g
; Seals: NBR 70;
Connection threads: 2 x G ¼ inch (DIN ISO 228-1)
; Distance between connection threads: 25 mm
; Socket compatibility: AMD, AM4, AM5

Package contents:
HEATKILLER® IV PRO (AMD, AM4, AM5) Acrylic Clean
Mounting hardware
Installation instructions
